IMPACT WRENCHES

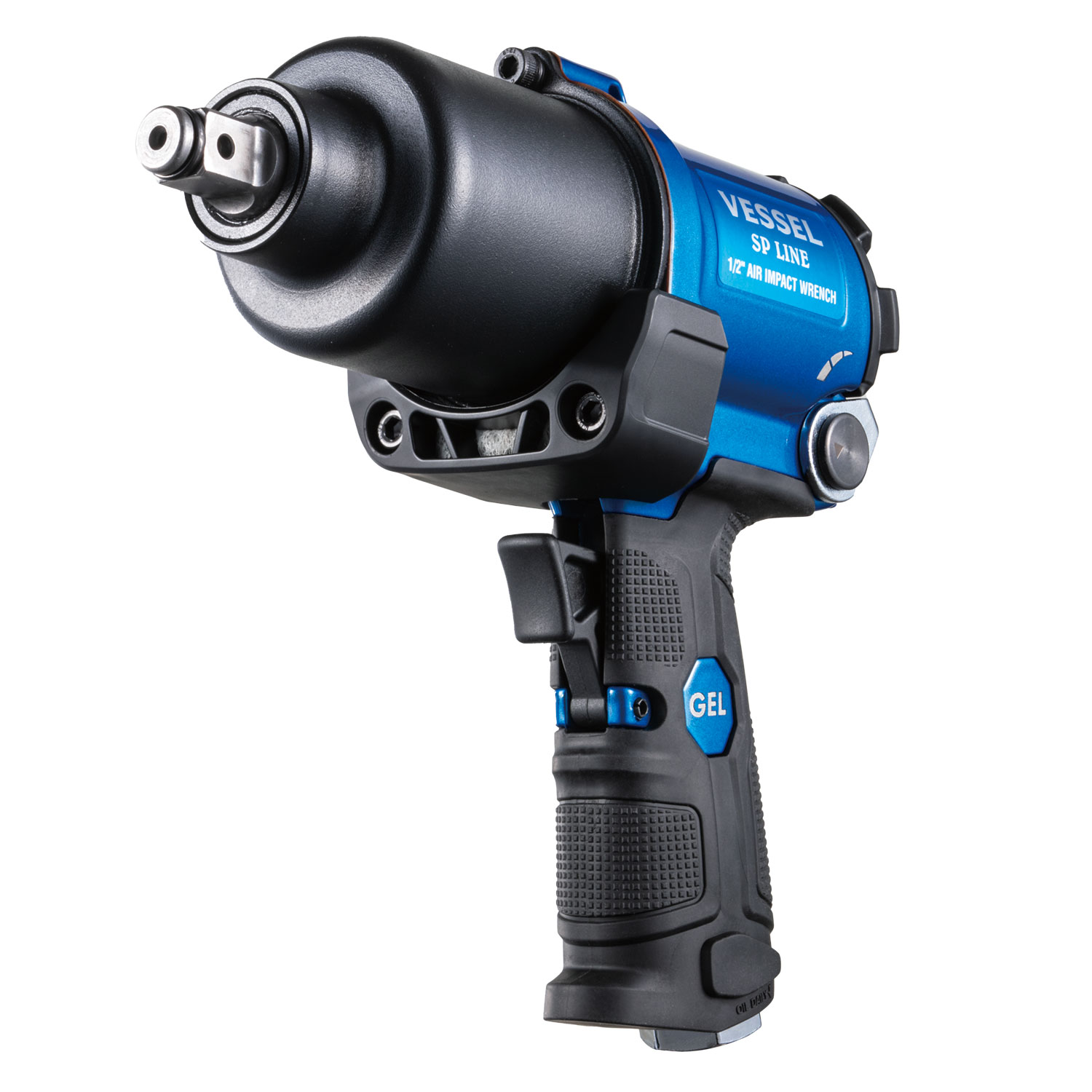

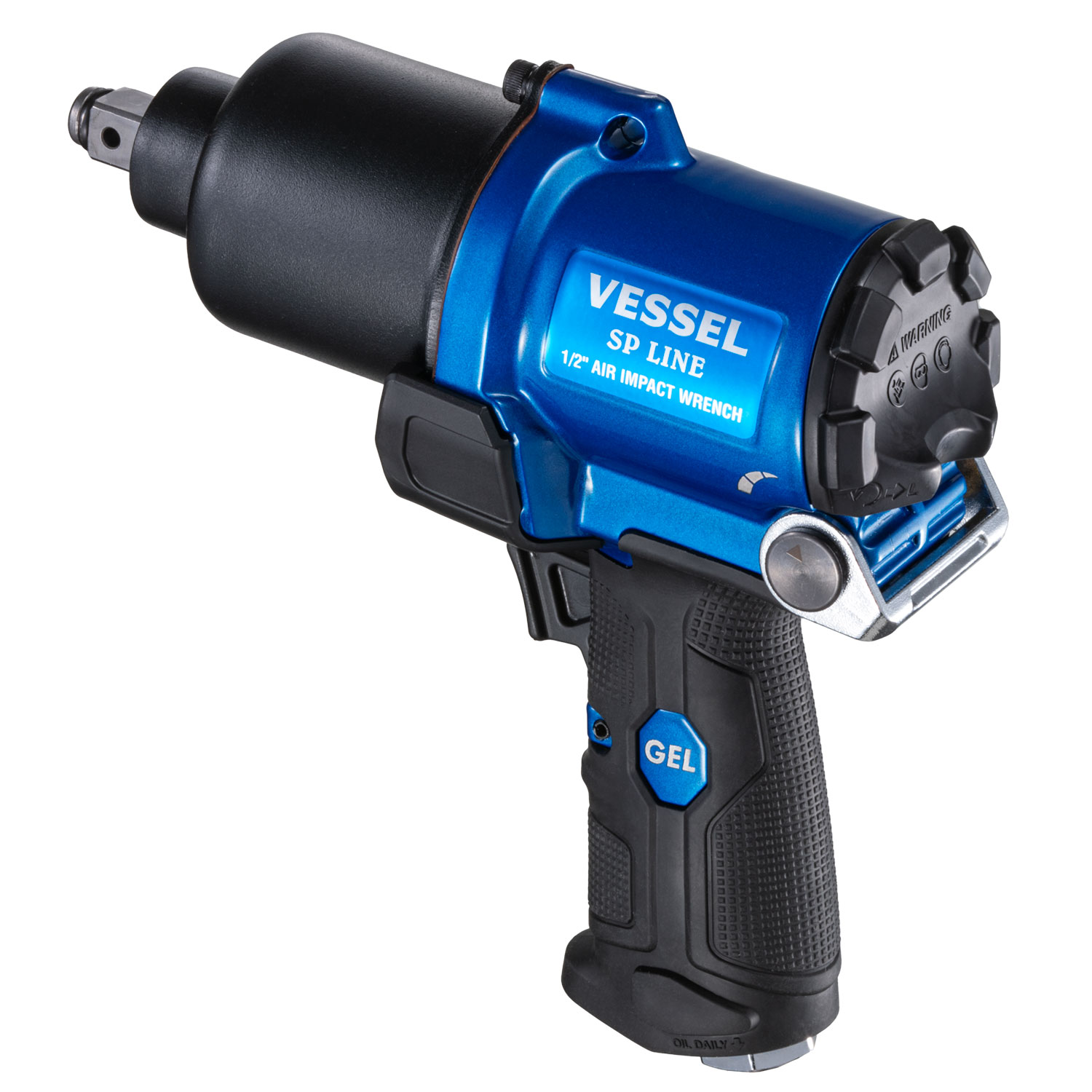

Air Impact Wrench 12.7mm No.VSP-1148
Shock absorption! Low noise! Improved operability!
*Twin hammer mechanism.
*Newy designed adjustment lever (counterclockwise/clockwise rotations, torque adjustment function activated during clockwise rotation).
*Maximum torque for counterclockwise rotation.
*Shock absorption gel-containing grip.
*Retainer ring type.
*Front exhaust.
*Pistol shape.
SPECIFICATIONS
| Sq. drive(mm) | Capacity standard BOLT O/D(mm) | Torque renge(N・m) | Air consumption(m3/min) | Air pressure(MPa) | Air hose inner O/D(mm) | JAN |
|---|---|---|---|---|---|---|
| 12.7 | 14～20 | 380～550 | 1 | 0.6 | 9.5 | 4545695004057 |
Install method
Retainer ring type
Exhaust
Front exhaust
Hose Coupling
NPT 1/4
PKG Dim (mm)
220 x 210 x 80
DOCUMENTS
Precautions
*To use the air tool safely, be sure to read attentively the instruction manual, understand fully the contents before use, and use in a right way.
*Wear protective goggles.
*Wear earplugs.
*Use the product with the proper air pressure.
*Any modification on the product is prohibited.
